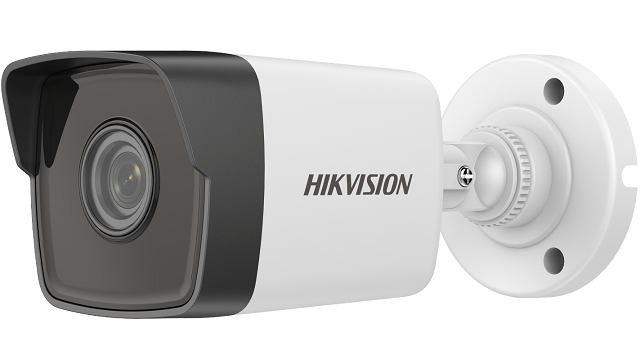

DS-2CD1023G0E-I(4mm)(C)(O-STD)
The Hikvision DS-2CD1023G0E-I (4mm)(C)(O-STD) is a professional-grade 2MP fixed bullet IP camera designed for reliable outdoor and indoor surveillance. Built with durability, clarity, and intelligent imaging features, it is widely used in residential buildings, shops, warehouses, offices, and commercial security systems where stable Full HD monitoring is required.
At its core, the camera features a 1/2.7” Progressive Scan CMOS sensor, capable of delivering a maximum resolution of 1920 × 1080 (Full HD). This ensures sharp, detailed images that clearly capture faces, objects, and movement, making it suitable for security-critical environments. With excellent low-light performance, the camera can operate at 0.01 Lux in color mode and switch to 0 Lux in IR mode, ensuring clear surveillance even in near-total darkness.
One of the standout features is its built-in infrared (IR) night vision system, which provides visibility up to 30 meters. The smart IR technology automatically adjusts infrared intensity to prevent overexposure, ensuring balanced and usable nighttime footage. This makes it highly effective for 24/7 surveillance applications.
The DS-2CD1023G0E-I offers flexible installation with adjustable pan (0°–360°), tilt (0°–180°), and rotation (0°–360°), allowing installers to position the camera precisely where needed. It also comes with two lens options—2.8mm for wide-angle coverage (112° FOV) and 4mm for more focused surveillance (90° FOV)—making it adaptable for different monitoring environments.
Video performance is highly efficient with support for H.265+/H.264+ compression, reducing bandwidth and storage usage while maintaining high-quality video. The camera supports dual-stream output, enabling simultaneous live viewing and recording optimization. With frame rates up to 30fps at 1080p, it ensures smooth and continuous video playback.
For image enhancement, the camera includes Digital WDR (Wide Dynamic Range), 3D DNR (Noise Reduction), and BLC (Backlight Compensation). These features improve clarity in challenging lighting conditions, such as bright backlight or low-light environments, ensuring balanced and professional-quality footage.
Networking capabilities are strong, supporting multiple protocols such as TCP/IP, HTTP, HTTPS, RTSP, FTP, DNS, and more, making it compatible with most modern surveillance systems. It integrates seamlessly with Hik-Connect and iVMS-4200 software, allowing remote monitoring via mobile or desktop devices.
Designed for harsh environments, the camera carries an IP67 weatherproof rating, meaning it is fully protected against dust and water, making it ideal for outdoor installation in all weather conditions. It also operates reliably in extreme temperatures ranging from -30°C to 60°C.
Power flexibility is another advantage, supporting both 12V DC power input and PoE (Power over Ethernet), simplifying installation and reducing wiring complexity.
Overall, the Hikvision DS-2CD1023G0E-I 4mm bullet camera is a cost-effective yet powerful surveillance solution offering excellent image quality, strong night vision, weather resistance, and reliable network integration for modern security systems.
| Category | Specification |
|---|---|
| Camera | DS-2CD1023G0E-I (4mm) Bullet IP Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 (Full HD 2MP) |
| Min Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter (Auto Switching) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–180° Rotate: 0°–360° |
| Lens | 4mm Fixed Lens (M12 Mount, F2.0 Aperture) |
| Field of View | H: 90.2°, V: 48.6°, D: 107.6° |
| IR Illuminator | IR Range up to 30m, Smart IR, 850nm wavelength |
| Video | H.265 / H.265+ / H.264 / H.264+ / MJPEG (Sub Stream) |
| Frame Rate | 1080p: Up to 30 fps 720p: Up to 30 fps |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Network | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, NTP |
| Ethernet | 1 × RJ45 10M/100M Adaptive Port |
| Image Processing | Brightness, Contrast, Saturation, Sharpness 3D DNR, BLC, Digital WDR |
| Event Features | Motion Detection, Video Tampering, Exception Alerts |
| Storage | NVR / Cloud / Network Storage Support |
| Power | 12V DC ±25% PoE (802.3af, Class 3) |
| Power Consumption | Max 6.5W |
| Protection | IP67 Weatherproof (Dust & Water Resistant) |
| Operating Conditions | -30°C to 60°C, Humidity ≤ 95% (Non-Condensing) |
| Dimensions | 177.6 × 66.2 × 67.8 mm |
| Weight | Approx. 270g |
